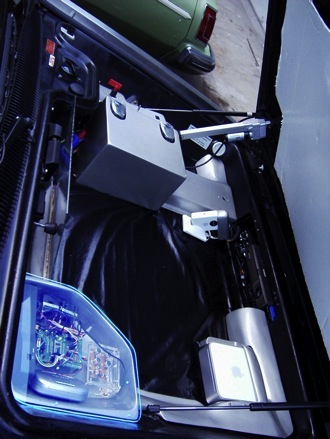

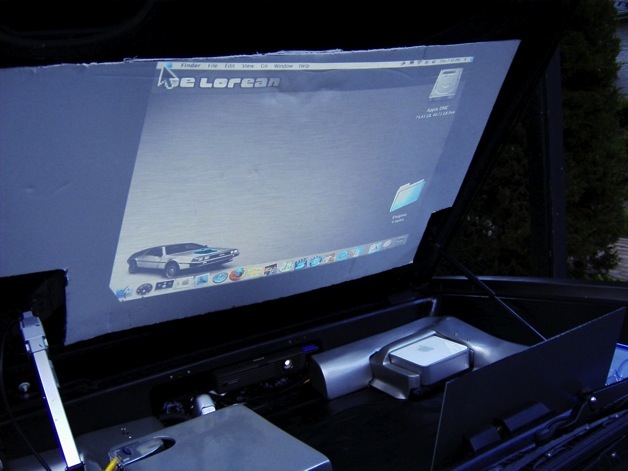

This DeLorean bonnet redefines the mobile media station. Here are some pictures of my prototype projecting images on the underside of the bonnet door. The Bonnet consists of Five major subsystems all networked together. Many of these systems are discussed individually and are accessible in the top navigation bar.

Systems:

•Mac Mini Dock

•12 Volt Power Supply and 110 Volt AC Inverter

•Tether Box

•Projection Center and mirror

•Basic Stamp Brain box and linear actuator

Specifications:

In the bonnet:

•1.5 GHz Mac Mini G4, 1 Gig RAM, 80GB, Combo Drive, No Modem

•Fiberglass Mac Mini Dock with custom “remote boot” port

•Proxima video projector displaying a 37 inch screen @ 1024 x 768

•Custom-cut projection screening material on underside of bonnet door

•Autoloc Linear Actuator System motorizes bonnet open / closure

•Basic Stamp Bonnet Door Monitoring and signaling System

•HB-25 Linear Actuator Motor Control System

•Power inverter to transform 12 VDC to 110 AC

•Airport Express with custom fiberglass dock and Griffin AirBase

•Netgear 4-port Ethernet Hub with 7808 PNP transistor power supply

•Optima 12-volt deep-cycle battery with digital voltmeter

•3-way audio selector switch

•Custom fabricated mirror to reflect projected image

•Custom fabricated projector mounting to absorb vibration

•Custom fabricated fiberglass pieces cover all unsightly wires

•Remote control relay and solenoid to unlatch bonnet wirelessly

•110 AC and Ethernet tether box accessible under front cowl
